On October 19th, Xiaomi TV 3 was released and the split design attracted much attention. A lot of appearance and configuration information about the millet TV 3 can be found on the Internet, but how does the split design work? What is the detailed panel and chip information? The price of 4999 yuan is worth it? With these questions, we will send you an exclusive evaluation part of the millet TV 3 disassembly.
This is our millet TV 3 to be dismantled. From the official specification of the parameters, the 60-inch model adopts the LGD IPS panel. The panel information and the internal structure of the host are also our most concern.
Millet TV 3 disassemble tool
Our tools for disassembling Millet TV 3 include multi-function screwdrivers, electric screwdrivers, rockers, and magnifiers.
After putting the millet TV 3 on the workbench, the next step is to dismantle it. The millet TV 3 has 22 screws on the back and can be solved with a screwdriver.
Continue screwing. . . Electric screwdriver is quick.
After the screws are removed, the one-piece plastic backshell is easily opened, and the internal structure of the millet TV 3 is about to be revealed.
Millet TV 3 screws are removed, after the one-piece plastic shell is opened after the backplane is like this, simple and unbelievable, and then compare the internal dismantling of a brand of 4K TV, can be said millet TV 3 work The alignment is really the conscience of the industry. It is easy to open, and the internal structure of Xiaomi TV 3 is about to be announced.
Millet TV 3 internal circuit board
We further appreciate the circuit board of Xiaomi TV 3, using a black board design, a variety of components above the decentralized arrangement, workmanship is more sophisticated.
Millet TV 3 screen power section details
Millet TV 3 internal circuit board
This part is the circuit board of the image processing and signal output part, and the dynamic image compensation and area backlight control are also handled in this part.
Millet TV 3 panel

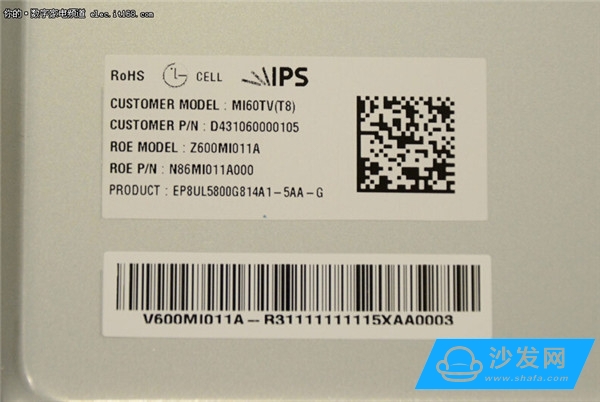

Next is the panel issue that we are more concerned about. It can be seen that the 60-inch IPS wide viewing angle panel from the original LG Display is used. The model of the panel is Xiaomi special MI60TV (T8). The packaging of the LCD module is Finished at Ruiyi.
Next is the control chip portion of the LCD module. At this point, a small screwdriver will come in handy.
Can see the LCD control chip is the LGD original chip
Let's look at the details of the LCD module, you can see the side-entry LED backlight is located in the lower frame part of the fuselage. Here, the dismantling of the screen part has come to an end. (remove the panel itself, the actual significance is not great)
The next step is to disassemble the main unit and the audio unit. First, take a look at the front.
Millet TV 3 host
The host and audio are all made of metal and the screw holes are underneath.
The process of disassembling the screws is the same as that of the screen, but it is not repeated. After the screws are removed, they cannot be opened immediately because there are snap-fit ​​structures inside, and we need to use the fins we prepared.
Slowly open the upper cover
Millet TV 3 host dismantling
This is the complete structure after removing the cover, you can see the sound separated on both sides, the middle part is the motherboard chip.
Millet TV 3 motherboard chip
Let's take a look at the control chip on the top cover.
Millet TV 3 button control chip
To see the part of the motherboard, still use a small screwdriver to disassemble a few screws.
Millet TV 3 complete motherboard section
We use a magnifying glass to look at the details. The first big chip is the built-in MStar 6A928 TV processor, and the built-in Samsung memory chip next to it.
Millet TV 3 motherboard details on the part
Millet TV 3 audio dismantling
The dismantling continues and it is now part of the dismantling of the sound.
Millet TV 3 motherboard chip
Then we can remove the motherboard chip, a variety of interfaces and chips highly integrated, the layout is quite reasonable.
Millet TV 3 Speaker Built-in Speaker
You can see the built-in 4 2.5-inch bass speakers and 2 20-ball dome tweeters. At the same time, Dolby Dolby Audio technology embedded, support for virtual surround, bass enhancement, dialogue enhancement, automatic volume balance function.
All accessories after dismantling the host
Here, the dismantling part came to an end, we can understand that this millet TV 3 is very clean and tidy, using the LG hard screen manufactured by LGD, split internal circuit layout is also more reasonable, detailed work fine, this is also Worth affirming.
